Single Joint Elevator

General

Single joint elevator is designed and manufactured in line with API Spec 8C “Specification for Drilling and Production Hoisting Equipment”, working capacity of single joint elevator can be 5ton and 10ton. Single joint elevator can be available with three models: DDF model, SPL model and DFZ model, DDF model is equal to SPJ model of international famous brand, DFZ model is designed to accormadate one single 18 degree drill pipe and covers pipes from 3½" to 6⅝".

DDF single joint elevator

Technical description:

DDF Single joint elevator with safety pin to lock latch was designed to “tail-in” or “lay-down” tubing and casing and allow fast alignment of threads when running casing. DDF type single joint elevators are constructed in two halves of practically the same weight, and have a latch mechanism for the two halves at the center with latch and a safety latch pin combination, DDF single joint elevators are made of high quality alloy steel, heat-treated, and MPI, the rated load are 5t (45kN) and10t (90kN), and cover pipe sizes from 2⅜" to 30" OD. API monogram in conjunction with numbers, product series numbers are hard die stamped on shoulders of single joint elevators for tracing, and single joint elevators shoulders are die stamped with size of single joint and rated working capacity. Manufacturer’s name plates are provided on bodies of single joint elevators, warranty for single joint elevators are listed in single joint elevator manual.



Note: DDF Single joint elevators are not designed to accommodate taper type pipes without use of a lifting plug, failure to comply with this warning could cause serious bodily harm or property damage, to use single joint elevators on taper shoulder drill pipes, DFZ or SPL single joint elevators are optional.



DDF single joint elevator product photo



single joint elevator

Technical data for DDF single joint elevator

Elevator model

Bore Dia.

(mm)

Casing O.D.

(in)

Rated Load

Ton (kN)

DDF 4½/5

116.69

5(45)

DDF 4¾/5

123.04

DDF 5/5

130.18

5

DDF 5½/5

142.88

DDF 5¾/5

149.23

DDF 6/5

155.58

6

DDF 6⅝/5

171.45

6⅝

DDF 7/5

180.98

7

DDF 7⅝/5

197.64

7⅝

DDF 7¾5

200.81

DDF 8⅝/5

223.04

8⅝

DDF 9/5

232.56

9

DDF 9⅝/5

248.44

9⅝

DDF 9⅞/5

254.79

9⅞

DDF 10¾/5

277.83

10¾

DDF 11¾/5

303.23

11¾

DDF 12⅞/5

331.8

12⅞

DDF 13⅜/5

344.5

13⅜

DDF 13⅝/5

350.85

13⅝

DDF 14/5

360.76

14

DDF 16/5

411.96

16

DDF 18/10

463.55

18

10(90)

DDF 18⅝/10

479.43

18⅝

DDF 20/10

515.14

20

DDF 21½/10

553.24

21½

DDF 22/10

565.94

22

DDF 24/10

617.55

24

DDF 24½/10

630.25

24½

DDF 26/10

669.14

26

DDF 27/10

694.54

27

DDF 28/10

720.32

28

DDF 30/10

771.53

30

Configuration and Description of DDF single joint elevator

single joint elevator configuration

Description for each item

S.N.

Name

Qty

1

Door

1

2

Body

1

3

Latch spring

1

4

Latch

1

5

Ring retainder

1

6

Hinge pin

1

7

Latch pin

1

8

Retainer pin

1

9

Steel chain

1



SPL Plate type Single Joint Elevator

SPL Single joint elevator with safety pin to lock latch was designed to “tail-in” or “lay-down” taper should drill pipes for mousehole connections and allow fast alignment of threads when running drill pipes. SPL type single joint elevators are designed by using of a lifting plug and constructed in two halves of practically the same weight, and have a latch mechanism for the two halves at the center with latch and a safety latch pin combination, SPL single joint elevators are made of high quality alloy steel, heat-treated, and MPI, the rated load are 5t (45kN) and10t (90kN), and cover pipe sizes from 3½" to 6⅝" OD. API monogram in conjunction with numbers, product series numbers are hard die stamped on shoulders of single joint elevators for tracing, and single joint elevators shoulders are die stamped with size of single joint and rated working capacity. Manufacturer’s name plates are provided on bodies of single joint elevators, warranty for single joint elevators are listed in single joint elevator manual.

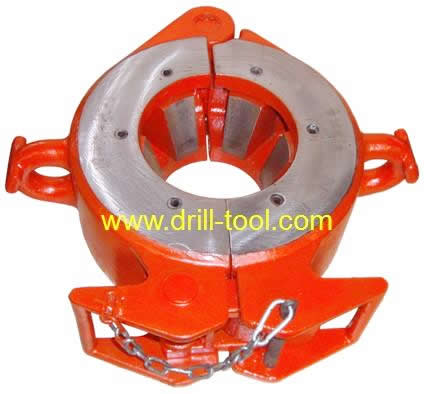

SPL single joint elevator product photo

single joint elevator SPL

Technical data for SPL single joint elevator

Model

For Pipe O.D.

SP 18°

3½"

4"

4½"

5"

5½"

6⅝"

DFZ type Single Joint Elevator

DFZ Single joint elevator with safety pin to lock latch was designed to “tail-in” or “lay-down” taper should drill pipes for mousehole connections and allow fast alignment of threads when running drill pipes. DFZ type single joint elevators constructed in two halves of practically the same weight, and have a latch mechanism for the two halves at the center with latch and a safety latch pin combination, DFZ single joint elevators are made of high quality alloy steel, heat-treated, and MPI, the rated load are 5t (45kN) and10t (90kN), and cover pipe sizes from 3½" to 6⅝" OD. API monogram in conjunction with numbers, product series numbers are hard die stamped on shoulders of single joint elevators for tracing, and single joint elevators shoulders are die stamped with size of single joint and rated working capacity. Manufacturer’s name plates are provided on bodies of single joint elevators, warranty for single joint elevators are listed in single joint elevator manual.

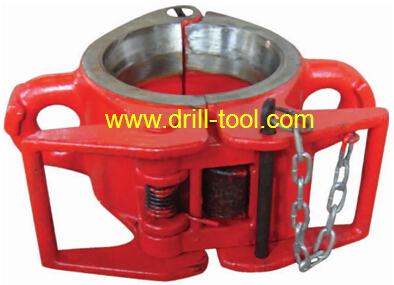

DFZ single joint elevator product photo

single joint elevator DFZ

Technical data for DFZ single joint elevator

Model

For Pipe O.D.

DFZ 18°

3½"

4"

4½"

5"

5½"

6⅝"



The information of our products listed in this website is provided in line with API Specifications and China's National Standards, description for any product can help readers make their own decisions.
